MÁY ÉP PHÂN CRI-MAN

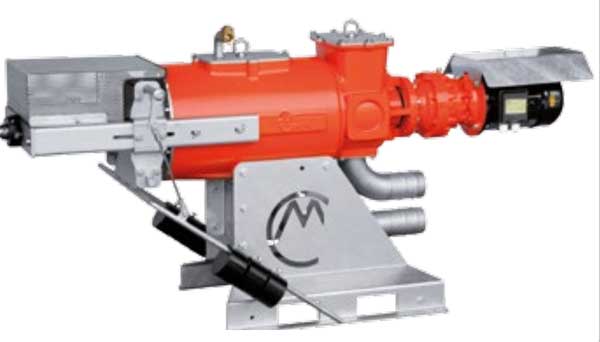

CRI-MAN  SCREW PRESS SEPARATORS

ỨNG DỤNG: ÉP PHÂN BÒ, PHÂN HEO, PHÂN GÀ...

Nhà sản xuất: CRIMAN - Italy

Model: SM260 MINI, SM260 BASIC, SM260 PROFESSIONAL, SM300 PROFESSIONAL, SM260 DM DRY MATTER, SM260FA DM DRY MATTER

Công ty Môi Trường Hành Trình Xanh hân hạnh là nhà phân phối chính thức sản phẩm Các loại Máy Ép Phân / Screw Press Separator CRI-MAN (Italy) tại thị trường Việt Nam. Chúng tôi cam kết cung cấp sản phẩm và dịch vụ tốt nhất tới Quý Khách hàng.

Ứng dụng: Ép phân bò, ép phân heo, ép phân gà, ép bùn bể Biogas...

View our range of screw press separators used for the processing of livestock slurry, biogas, and civil/industrial effluents. They feature a screen inspection window, screw treatment, screens, planetary gearbox,  side supported screw front, sealing system, sealing inspection window, and smart piping input.

1. SM260 MINI SERIES

• Motor 3 kW
• Capacity 4,5 - 18 m³/h
• % Dry matter up to 30%
• For medium-sized barns (300 - 800 head)

Technical specifications:

• Screw in AISI 304 treated stainless steel
• Standard Screen in AISI 316 stainless steel
• Planetary gear box
• Sealing system with three lip seals (mechanical seal on request)
• Capacity: 4,5 - 18 m³/h (20 - 79 US gpm)
• Rpm: 20 (50Hz) (24 (60Hz))
• Motor power: 3 kW (4 HP)
• Screen mesh: 0,25 - 1 mm (0,01 - 0,04 inches)
• Up to 30% Dry Matter

2. SM260 BASIC SERIES

• Motor power 4 kW
• Capacity 4 - 50 m³/h
• % Dry matter up to 30%
• For medium-sized barns (300 - 800 head)

Technical specifications:

• Screw in AISI 304 treated stainless steel
• Standard Screen in AISI 316 stainless steel
• Planetary gear boxPl
• Sealing system with three lip seals (mechanical seal on request)
• Capacity: 4 - 50 m³/h (18 - 220 US gpm)
• Rpm: 33 (50Hz) (40 (60Hz))
• Motor power: 4 kW (5,4 HP)
• Screen mesh: 0,25 - 1 mm (0,01 - 0,04 inches)
• Up to 30% Dry Matter

3. SM260 PROFESSIONAL SERIES

• Motor power 4 kW
• Capacity 4 - 50 m³/h
• % Dry matter up to 30%
• For medium to large barns (700 - 1200 head ) and biogas plants

Technical specifications:

• Screw in AISI 304 treated stainless steel
• Front side supported screw
• Standard Screen in AISI 316 stainless steel
• Planetary gear box
• Sealing system with three lip seals (mechanical seal on request)
• Capacity: 4 - 50 m³/h (18 - 220 US gpm)
• Rpm: 33 (50Hz) (40 (60Hz))
• Motor power: 4 kW (5,4 HP)
• Screen mesh: 0,25 - 1 mm (0,01 - 0,04 inches)
• Up to 30% Dry Matter

4. SM300 PROFESSIONAL SERIES

• Motor power 5,5 kW
• Capacity 6 - 72 m³/h
• % Dry matter up to 30%
• For large barns (over 1000 head) and biogas plants

Technical specifications:

• Screw in AISI 304 treated stainless steel
• Front side supported screw
• Standard Screen in AISI 316 stainless steel (Heavy Duty screen on request)S
• Planetary gear box
• Sealing system with three lip seals (mechanical seal on request)
• Capacity: 6 - 72 m³/h (26 - 317 US gpm)
• Rpm: 33 (50Hz) (40 (60Hz))
• Motor power: 5,5 kW (7,4 HP)
• Screen mesh: 0,25 - 1 mm (0,01 - 0,04 inches)
• Up to 30% Dry Matter

Đặc tính kỹ thuật Máy ép phân CRI-MAN:

	Screen inspection window Top inspection window for quick and easy checking that the screen is clean.
	Screw treatment Innovative coating treatment with a mixture of tungsten carbide and metallic matrix that ensures very high hardness and low brittleness.
	Screens Geometrically structured stainless steel screens with strength and chemical composition of materials specifically designed for each application.
	Planetary gearbox Reduced energy consumption and longer gear life.
	Sealing inspection window Allows visual checks for leakage, safeguarding the integrity of the gearbox in this event.  Sealing system System of three lip seals with grease for a secure seal between the screw press separator and the gearbox.
	Smart piping input Inlet piping designed to drain empty and avoid possible freezing when the machine is inactive.
	Side supported screw front A front bearing structure provides a perfect guide for the screw, reducing wear on the screen.
