UV ANALYZERS _ MODEL CA6

3.1

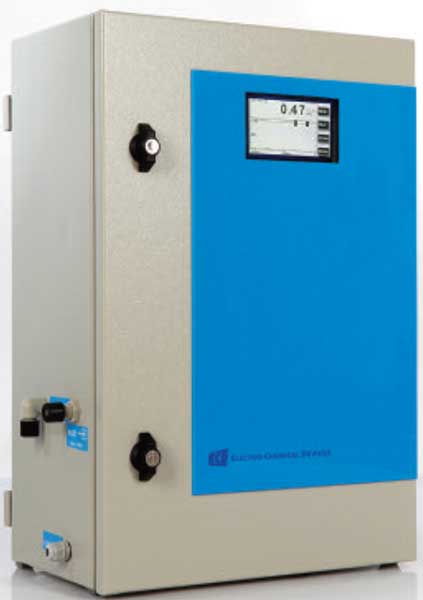

Thiết bị đo online CA6 UV Analyzers

Xuất xứ: Electro-Chemical Devices (ECD) _ USA

Model sensor: CA6-AA-Bx-C-D-E

Thông số kỹ thuật:

• Cáp dài: 6m (option cáp dài hơn)

Các yêu cầu khác vui lòng call

01

Chọn AA và Bx

30

Nitrate Analyzer

Range A: 0-30 mg/l ; Range B: 0-100 mg/l; Range C: 0-250 mg/l

31

Ammonia Analyzer

Range A: 0-10 mg/l ; Range B: 0-100 mg/l; Range C: 0-1000 mg/l

32

Nitrate + Ammonia Analyzer

Choose one range for each parameter

40

COD UV/254 nm Analyzer

Range A: 0-200 mg/l ; Range B: 0-2000 mg/l; Range C: 0-20.0000 mg/l

41

COD + Nitrate Analyzer

Choose one range for each parameter

42

COD + Ammonia Analyzer

Choose one range for each parameter

43

BOD Analyzer

Range A: 0-200 mg/l ; Range B: 0-2000 mg/l; Range C: 0-20.0000 mg/l

44

BOD & COD Analyzer

Choose one range for each parameter

Chọn C (Number of Channels – số cổng kết nối)

0

1 Channel, Touch Screen Interface, no Fast Loop Reservoir Sample Cell

1

1 Channel, Touch Screen Interface, Fast Loop Reservoir Sample Cell

2

2 Channels, Dual Channel Interface and no Fast Loop Reservoir Sample Cells

3

2 Channels, Dual Channel Interface and (2) Fast Loop Reservoir Sample Cells

4

4 Channels, Multi‐stream Interface and (4) Fast Loop Reservoir Sample Cells

Chọn D (Filtration – bộ lọc)

0

No Filtration Unit

1

Filtration Unit with auto cleaning cycles via blowback with user supplied
compressed air, 100µ filter cartridge (PN 1000004‐1)

2

Filtration Unit with auto cleaning cycles via blowback with user supplied
compressed air, 50µ filter cartridge (PN 1000004‐2)

3

Mounting Fixture and brackets for Filtration Unit (PN 1000006)

Chọn E (Dilution – bộ pha loãng mẫu)

0

No Dilution Module

1

Dilution Module (user must supply deionized water sample @ atmospheric
pressure) (PN 1000003)

2

Dilution Module with Fast Loop Sample Cell (use with plumbed deionized water) (PN 1000003 + 1000270‐1)

3

Dilution Module with 30 Liter Reservoir and level switch (PN 1000003 + 1000005)
