Strathtox Laboratory Respirometer

Nhà sản xuất: Strathkelvin - Scotland (Vương Quốc Anh / UK)

Model: Strathtox

Kể từ khi phát hiện ra quá trình bùn hoạt tính vào năm 1914 đã áp dụng nhiều phương pháp phân tích để tối ưu hóa hiệu suất của nhà máy xử lý nước thải. Các phép đo phân tích này báo cáo các điều kiện vận hành phù hợp, nhưng không ai cung cấp dữ liệu về sức khoẻ của vi sinh vật trong Bùn Hoạt Tính. Kết quả là nhiều nhà máy rơi vào tình trạng đầu vào ô nhiễm chất độc hại, Bể lắng quá tải, xử lý ammonia kém, bùn khó lắng và trôi ra khỏi bể lắng, hiệu suất năng lượng thấp, vận hành quá tải và nhiều điều kiện khác do quản lý bùn sinh học kém.

Since the discovery of the activated sludge process in 1913 many analytical methods have been applied to optimize plant performance. These analytical measurements report the conditions in the lanes, but none provide data regarding the health of the plant's biomass. As a result, many plants fall victim to toxic influent, clarifier bulking, poor ammonia removal, solids carry-over, poor energy performance, over-aeration, excessive wasting, non-compliant discharge and many other conditions that result from poor sludge management.

The Strathtox provides precision respirometry to rapidly measure actual Activated Sludge bacterial performance.

• Advanced 6-cell precision OUR measurement system
• Easy and rapid test procedures
• User friendly software providing a real time display of bacterial respiration
• Automatic Report generation and calculation of EC10,20,50 values for carbonaceous and nitrifying bacteria
• Efficient procedures gives test times of between approximately 10 and 30 minutes
• Tests provided are: Carbonaceous and Nitrifying Sludge Health, Critical Oxygen Point Analysis, Respiration Inhibition, Nitrification Inhibition, BOD(ST), and Respirometry.T

Applications in:

• Toxicity Management
• Nitrification Management
• Aeration Efficiency
• Nutrient Control
• Sludge HealthS
• System Trouble-shooting
• Short-term BOD
• Plant capacity
• Respiration tests

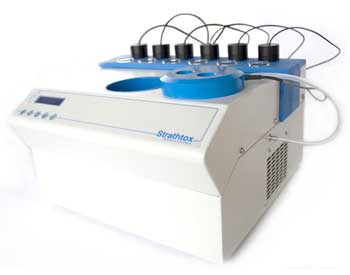

Strathtox is an integrated desktop respirometer comprising the following sub-systems:

• Temperature controlled Circulating Waterbath This is used to maintain the activated sludge at constant temperature during a respirometry run. A six position magnetic stirrer is located beneath the bath. The six 20ml respirometer cells are located in a rack, for easy removal at the end of a run.
• Activated Sludge Temperature Controlled Containment A flask provides aeration and containment of approximately 600ml of AS that can also be spilt for Nitrification testing.
• Oxygen Electrodes These high precision electrodes are housed in electrode holders for easy insertion into the respirometer cells. They require little maintenance, other than occasional membrane changes.
• Oxygen Interface The six oxygen electrodes are connected to this unit, which transmits the digital signals to the computer software.

Software

• The easy-to-use Windows software comprises 5 different tests. Each test program has a similar basic structure compromising four stages: Setup; Recording; Analysis; Report. To illustrate this, sample screens from a Respiration Inhibition Test are shown below.
• Setup - This is the first screen and is used to input the data about the test. This information is transferred to the final Report.
• Recording - Clicking a 'Start' button on the toolbar of the Setup screen, commences the recording. Six traces scroll across the screen, providing a visual check on the rate and linearity of the decline in the oxygen content of the cells as respiration proceeds. At the end of the run, a file is created to save the data.
• Report - The report window provides information on the respiration rates, inhibition or (Toxicity) values, an inhibition v concentration graph and a respiration v concentration plot, together with a full audit trail. The report is in the form of a locked spreadsheet, so data cannot be altered. The data can however, be exported to Excel, or a database for further processing, if required. The report and associated Analysis screen can be printed or saved to an archive folder.
